Wholesale SH-type Rotary Drum Screen with Silo Suppliers, Pricelist

Send Inquiry

Product Description

Introduction

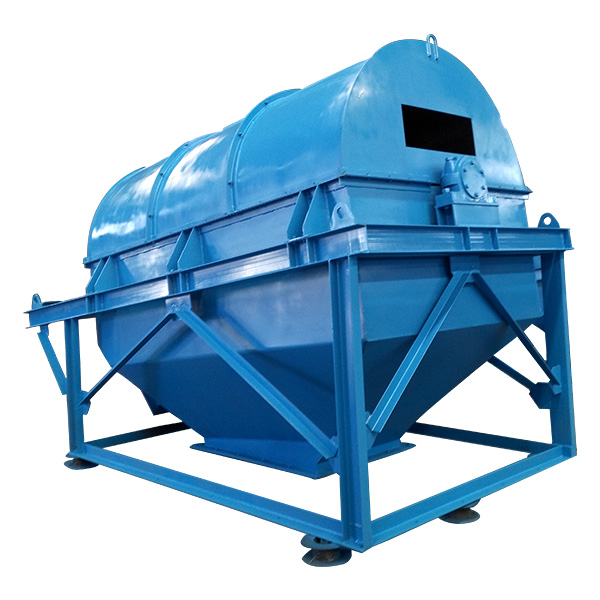

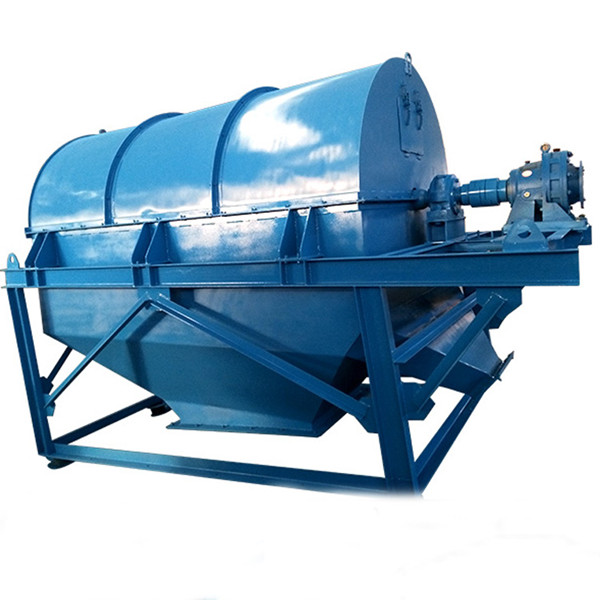

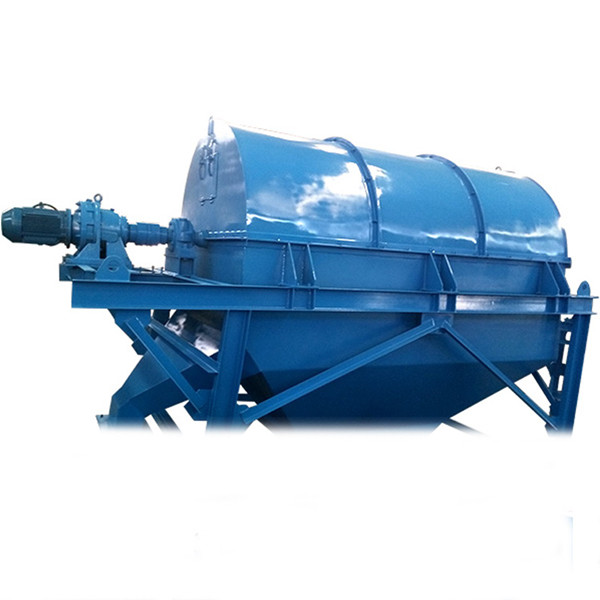

1. SH - type rotary drum screen also called compound fertilizer special screen, can be four - level screening. The finished product area has two sections.

2. The trommel rotary screen has silo. The lower part of the silo has the fan gate, and the coarse material section has the chute which can send the coarse material directly to the transport machinery, so as to facilitate the process layout. If the user requests the finished product area to set only one section, namely the three level rotary screen, please explain it when ordering.

Key Features & Advantages

Wide adaptability of materials

Rotary drum screen is widely used in the screening of all kinds of materials. No matter it is low-quality coal, coal slime, soot or other materials, all of them are screened smoothly.

Simple and diverse feeding methods

The feeding port of trommel screen can be designed according to the actual site. No matter it is belt, funnel or other feeding methods, it can feed smoothly without taking special measures.

High screening efficiency

The screen machine is equipped with a comb type cleaning and screening mechanism. In the screening process, no matter how dirty and miscellaneous the materials are, they can be screened, so improving the screening efficiency.

Large handling capacity

In the same size, the circle area is larger than other shape area, so the effective screen area is larger, so that the material can fully contact the screen, so the handling capacity per unit time is larger.

Low energy consumption

The power of rotary drum screen motor is small, which is one half to one third of other screen types, and the running time is only one half of other screen types when handling the same amount of materials, so the energy consumption is low.

Good working environment

The whole sieve cylinder can be sealed with a sealed isolation cover to completely remove dust flying and block splashes in the screening cycle, avoiding pollution to the working environment.

Low noise of equipment

During the operation of the rotary screen, due to its low rotary speed and isolation from the outside world, the noise cannot be transmitted to the outside, thus reducing the noise of the equipment.

Long service life & small maintenance

Rotary screen is composed of several circular mesh. Its total screening area is much larger than the screening area of other screen types, and the screening efficiency is high, the equipment running time is short, so the service life is long, has less vulnerable parts, and small maintenance.

Convenient maintenance

The sealing isolation cover of the equipment can be disassembled, which will not affect the normal operation of the machine and make maintenance very convenient.

Technical Parameters

Specification model	SH1015	SH1220	SH1224	SH1530	SH1535
Roller diameter (mm)	1000	1250	1250	1500	1500
Roller length (mm)	1500	2000	2400	3000	3500
Processing capacity (t/h)	50-100	100-150	150-200	200-270	270-340
Roller inclination (degrees)	10-12
Rotation speed (r/min)	17	17	17	15	15
Motor power (kw)	4	5.5	7.5	11	15
Discharge size (mm)	10-13

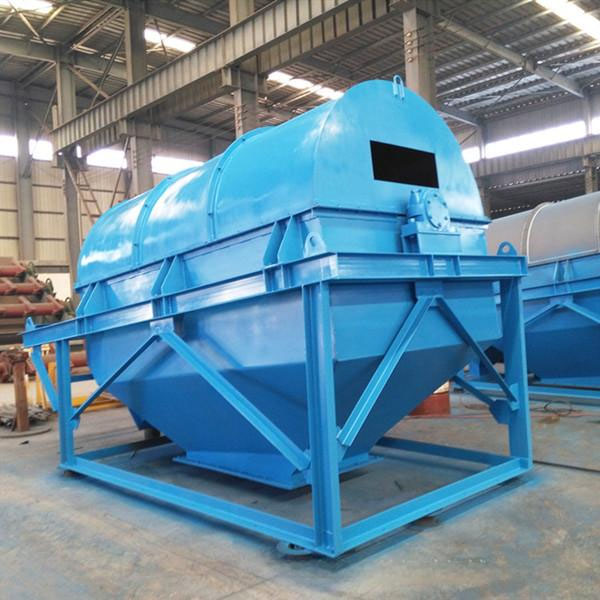

Product Showcase

Frequently Asked Questions

What kind of materials can the rotary drum screen process?

The rotary drum screen has wide adaptability and is suitable for screening all kinds of materials, including low-quality coal, coal slime, soot, compound fertilizer, and other challenging feedstocks.

How does it maintain a dust-free working environment?

The entire sieve cylinder can be fully sealed using a sealed isolation cover. This structure effectively prevents dust from flying and blocks splashes during the screening process, ensuring a clean and safe work environment.

What feeding methods are supported by this trommel screen?

The feeding inlet can be fully customized based on actual site logistics. It supports diverse feeding methods including belt, funnel, and other systems, allowing smooth material input without requiring extra setup measures.

Why is the rotary drum screen considered energy-efficient?

The power requirement of the motor is highly optimized—consuming only one-half to one-third of the power needed by other screen models. In addition, its processing efficiency reduces the operating runtime by half for the same volume of materials.

How easy is it to perform maintenance on this equipment?

Maintenance is straightforward and convenient. The sealed isolation cover can be easily disassembled without disrupting normal operations. Furthermore, the design has fewer vulnerable parts, reducing regular upkeep needs.

Can the screening sections be customized?

Yes. While the standard configuration offers four-level screening with two finished product sections, customers can request a three-level rotary screen (with only one finished section) during the ordering process.
