Introduction

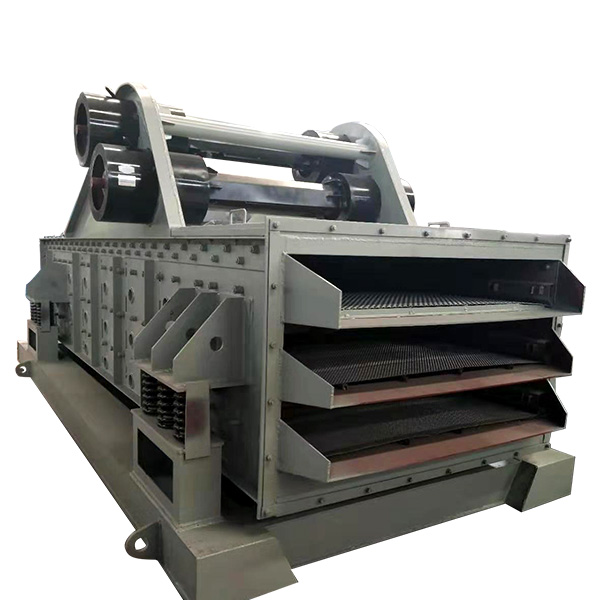

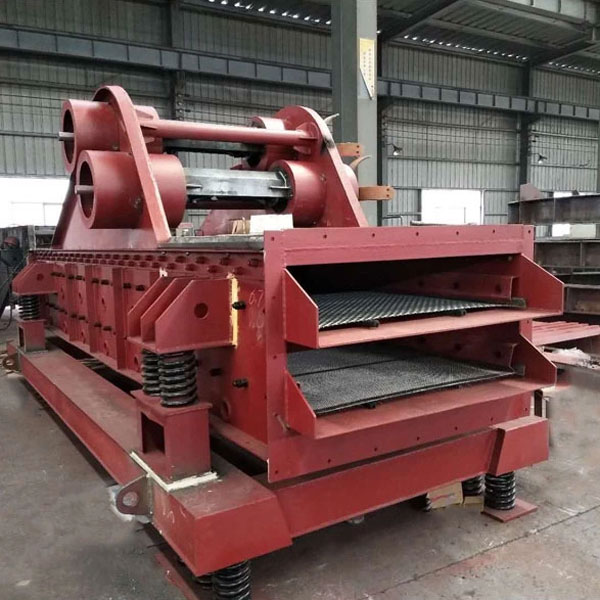

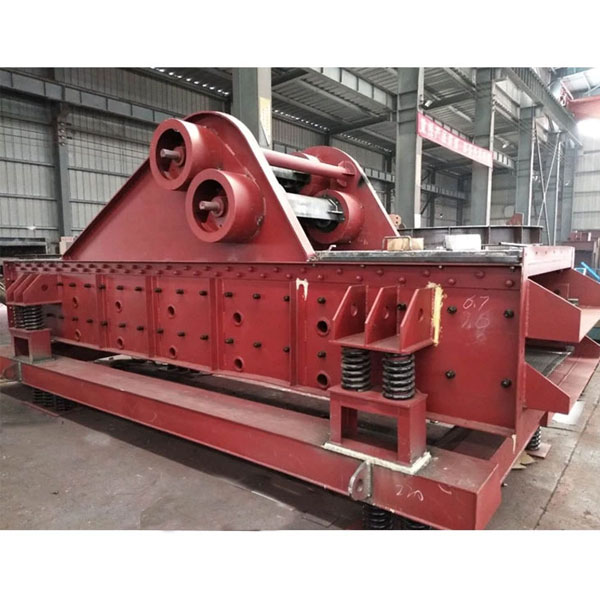

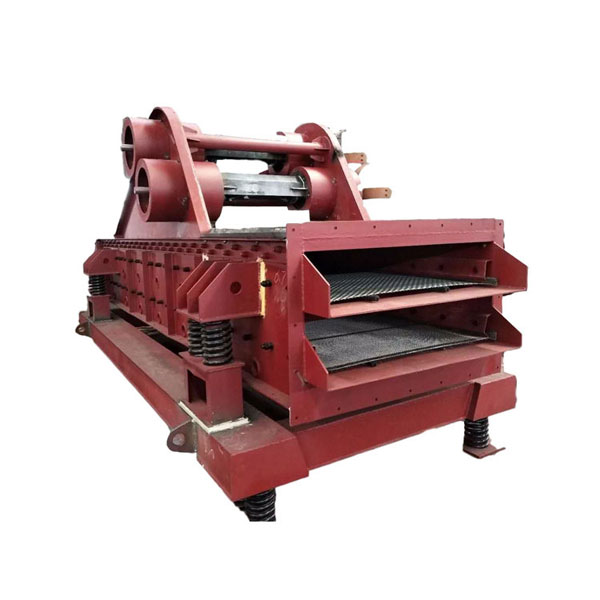

GPS series high screen efficiency vibrating screen is mainly used for material classification and vibratory screen separator. It adopts pedestal type or flange type vibration exciter to make the reverse synchronous rotation, then make the screen body along the straight line to do the periodic reciprocating motion, so as to achieve the purpose of classification. The screen frame is connected by high-strength bolts, and the screen surface is composed of arc section and straight section. The structure is firm and durable.
✓
Overall strength, high stiffness and long service life of the sieve frame
✓
Optimize the dynamic performance of the sieve frame structure
✓
Reasonable structure and high machining accuracy
✓
Good screening effect and high screen efficiency
Technical Parameters
| Name |
Unit |
GPS-1231 |
GPS-1431 |
GPS-1837 |
GPS-2448 |
| Feed granularity |
% |
≥45 |
≥45 |
≥45 |
≥45 |
| Screening capacity |
t/h |
15-19 |
15-19 |
28-33 |
60-120 |
| Screen size |
mm |
1200X3100 |
1400X3100 |
1800X3700 |
2400X4800 |
| Screen size (Opening) |
mm |
0.3-0.35 |
0.3-0.35 |
0.3-0.35 |
0.3-0.35 |
| Double amplitude |
mm |
3-5 |
3-5 |
3-5 |
3-5 |
| Vibration frequency |
Hz |
25 |
25 |
25 |
25 |
| Motor |
Model |
- |
Y122M-4 |
Y132S-4 |
Y132M-4 |
Y180M-4 |
| Power |
Kw |
- |
- |
Y132M-4 |
Y180M-4 |
| Voltage |
V |
380 |
380 |
380 |
380 |
| Dimensions |
mm |
3020X2400X2100 |
3020X2600X2100 |
3527X3060X2130 |
5025X3880X2693 |
| Single point max dynamic load |
N |
±2000 |
±2500 |
±3500 |
±5000 |
★
Convenient maintenance and overhaul
★
Stable operation and low noise
Frequently Asked Questions
What are the primary applications for the GPS series high screen efficiency vibrating screen?
The GPS series is primarily designed for high-efficiency material classification and works as a robust vibratory screen separator in various industrial processing lines.
How does the vibration mechanism work in this series?
It utilizes either pedestal or flange type vibration exciters to create reverse synchronous rotation, moving the screen body in a straight-line periodic reciprocating motion for precise classification.
What is the typical screening capacity of these machines?
Depending on the model, capacity ranges from 15-19 t/h for smaller models like the GPS-1231, up to 60-120 t/h for the large-scale GPS-2448 model.
Is the screen structure durable for heavy-duty use?
Yes, the screen frame is connected using high-strength bolts and features a combined arc and straight section surface, ensuring high stiffness and a long service life.
What are the power and voltage requirements?
The standard operating voltage is 380V. The power requirements vary by model, utilizing high-performance Y-series motors (e.g., Y122M, Y132S, Y180M).
Does the machine produce high levels of noise during operation?
No, the GPS series is engineered for stable operation and low noise performance, making it suitable for modern industrial environments.
