Product Description

Introduction

The JFSS series composite vibrating screen is mainly used in blast furnace hoppers, sintering plants, raw material plants, coal plants, mining plants, etc.

⚙️
Be arranged back-to-back in the sieve box, with adult font arrangement and compact structure, which can effectively reduce the floor space and make reasonable use of space.
🧼
Adopt rod and bar structure and be designed with self-cleaning device. High opening rate of sieve hole, not easy to block, high screening efficiency.
🛡️
A sealing cover above the sieve box to make the screening work in a fully sealed state, which can effectively prevent dust generated by the screening from flying everywhere.
🌪️
Equipped with dust removal port, which can absorb the dust generated in the work of the vibrating screen, greatly reduce the dust caused by screening materials, and improve the dust removal effect.
🕹️
The sluice gate is designed at the feed inlet, which can effectively control the material flow, adjust the material flow amount on both sides of the screen plate, and make the material distribution balance.
🏗️
The screen box can be supported on a fixed base, or on a walking bottom frame with walking wheel and rail clamp.
Technical Parameters
JFSS Series Sintered Environmental Protection Screen
Sintering Machine (㎡) Matched Vibrating Screen (Model) Processing Capacity (t/h) Quantity (Set） Blanking Granularity (mm ) Remarks
90 JFSS105*600 Sintering Primary Sieve 400 2 10 Open One, Get One Ready
JFSS105*600 Sintering Secondary Sieve 220 2 5 Open One, Get One Ready
JFSS105*600 Sintering Tertiary Sieve 220 2 20 Open One, Get One Ready
180 2JFSS125*700-II Sintering Primary And Secondary Sieves 500 2 20、10 Open One, Get One Ready
JFSS125*600-I丨Sintering Tertiary Sieve 300 2 5 Open One, Get One Ready
2*180 2JFSS125*600-IV Sintering Primary And Secondary Sieves 650 3 20、10 Open One, Get One Ready
2JFSS125*600-IV Sintering Secondary Sieve 400 3 5 Open One, Get One Ready
265 2JFSS150*700-II Sintering Primary And Secondary Sieves 700 2 20、10 Open One, Get One Ready
JFSS150X600-I丨Sintering Secondary Sieve 350 2 5 Open One, Get One Ready
2*265 2JFSS150*700-IV Sintering Primary And Secondary Sieves 750 3 20、10 Open One, Get One Ready
2JFSS150*600-IV Sintering Secondary Sieve 350 3 5 Open One, Get One Ready
360 2JFSS150*700-MSintering Primary And Secondary Sieves 890 2 20、10 Open One, Get One Ready
2JFSS150*600-I丨Sintering Secondary Sieve 500 2 5 Open One, Get One Ready
2*360 2JFSS150*700-IV Sintering Primary And Secondary Sieves 950 2 20、10 Open One, Get One Ready
2JFSS150*600-IV Sintering Secondary Sieve 700 2 5 Open One, Get One Ready
450 2JFSS185*700-II Sintering Primary And Secondary Sieves 1050 2 20、10 Open One, Get One Ready
2JFSS185*600-M Sintering Secondary Sieve 700 2 5 Open One, Get One Ready
2*450 2JFSS185*700-IV Sintering Primary And Secondary Ssieves 1050 4 20、10 Open Three And Prepare One
2 J FSS185*600- IV Sintering Secondary Sieve 700 4 5 Open Two And Prepare One
500 2JFSS200*700-II Sintering Primary And Secondary Sieves 1150 2 20、10 Open One, Get One Ready
2JFSS200*600-I丨Sintering Secondary Sieve 800 2 5 Open One, Get One Ready
2*500 2JFSS200*700-IVSintering Primary And Secondary Sieves 1050 4 20、10 Open Three And Prepare One
2JFSS200*600-IV Sintering Secondary Sieve 700 4 5 Open three and prepare One
Product Display

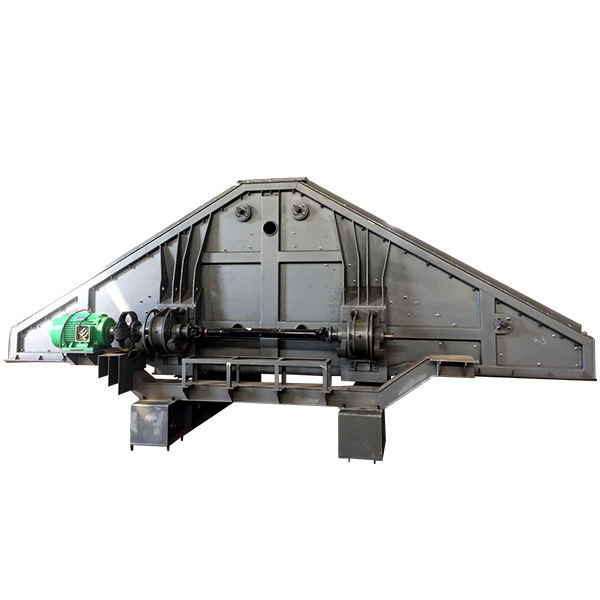

Vibrating Screen 1

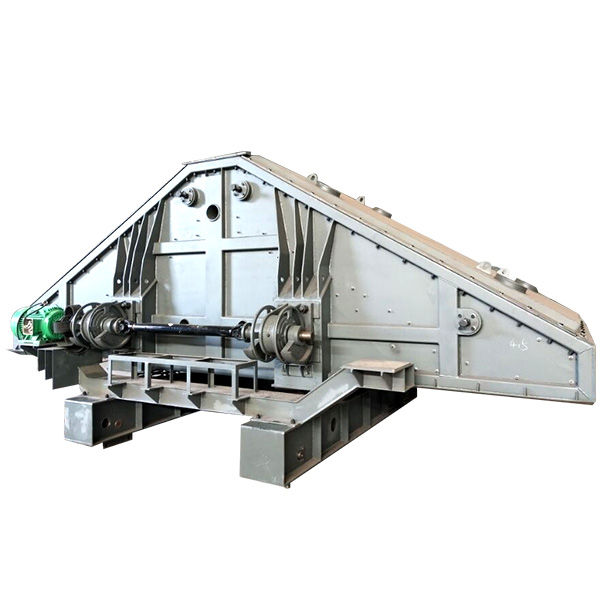

Vibrating Screen 2

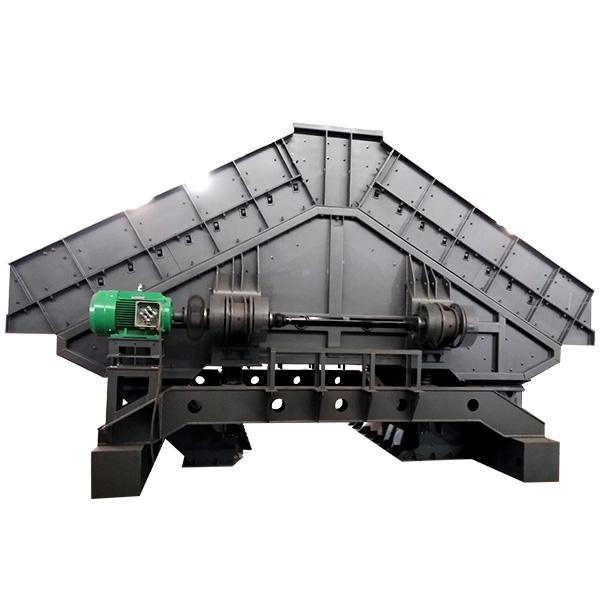

Vibrating Screen 3
Vibrating Screen 4
Vibrating Screen 5
Vibrating Screen 6
Frequently Asked Questions
What are the primary applications for the JFSS series vibrating screen?
The JFSS series is specifically designed for use in blast furnace hoppers, sintering plants, raw material plants, coal plants, and various mining facilities for efficient material screening.
How does the self-cleaning feature work?
The screen adopts a rod and bar structure integrated with a self-cleaning device. This design ensures a high opening rate for the sieve holes, preventing blockage and maintaining high screening efficiency.
What measures are in place for dust control?
The equipment features a fully sealed screening box with a top cover and dedicated dust removal ports. These components work together to absorb generated dust and prevent it from flying in the workspace.
Can the material flow be adjusted during operation?
Yes, the sluice gate at the feed inlet allows operators to effectively control the material flow and adjust the distribution across both sides of the screen plate for optimal balance.
What are the installation options for the sieve box?
The screen box is versatile in its installation; it can be mounted on a fixed stationary base or a mobile walking bottom frame equipped with wheels and rail clamps.
What does "Open One, Get One Ready" mean in the technical parameters?
It refers to the operational redundancy strategy where one set of equipment is actively running while a second set is kept in standby mode to ensure continuous production without downtime.
