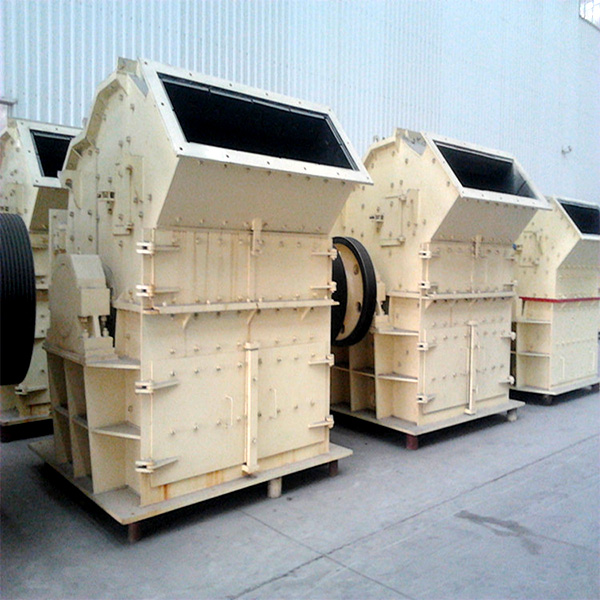

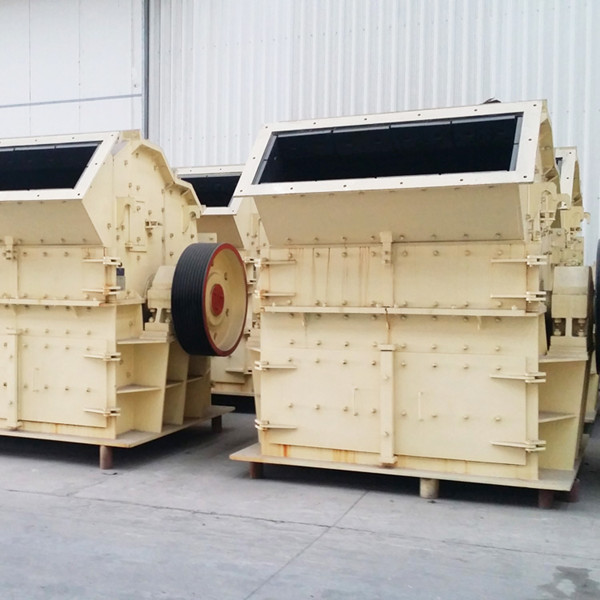

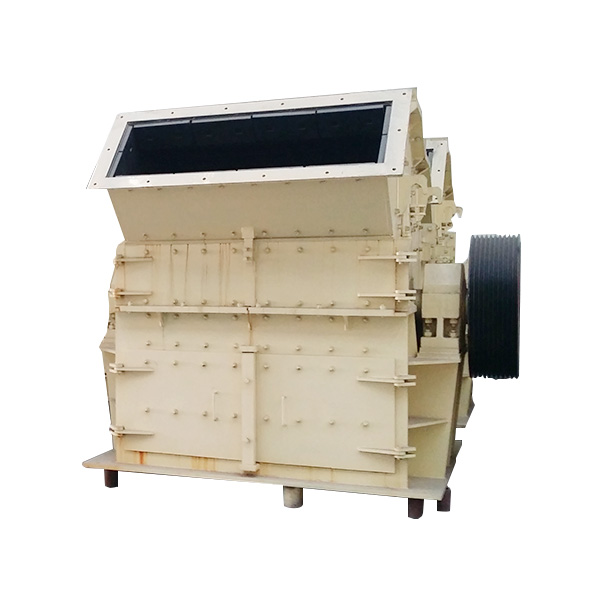

PF series impact hammer crusher is the latest generation of impact crusher developed in absorbing advanced technologies at home and abroad and combining with specific conditions of sand and stone industry. Impact Crusher adopts the latest manufacturing technology, unique structural design, processing finished products like cube, tension-free, and crack, particle shape and phase. It can crush the size of the a variety of coarse, medium, fine materials (granite, limestone, concrete, etc.) which is not more than 500 mm, and the strength is not more than 350MPa.
The ideal feed size of this Crusher Machine is 100-500mm, and the maximum shall not exceed the specified value. The gap between hammer head, counterattack plate and even whole parts can be adjusted according to the needs of users.
| Model | Rotor Diameter (mm) | Rotor Width (mm) | Rotor Speed (r/min) | Feeding Granularity (mm) | Discharge Granularity (mm) | Processing Capacity (t/h) | Motor Model / Power (Kw) |
|---|---|---|---|---|---|---|---|
| PF- 1007 | 1000 | 700 | 680 | ≤300 | ≤20 | 30-50 | Y280M-6/55 |
| PF- 1010 | 1000 | 1000 | 683 | ≤350 | ≤25 | 50-80 | Y315S-6/75 |
| PF- 1210 | 1250 | 1000 | 508 | ≤350 | ≤30 | 70-120 | Y315L1-6/110 |
| PF- 1214 | 1250 | 1400 | 508 | ≤350 | ≤40 | 130-180 | Y315L2-6/132 |
| PF- 1315 | 1320 | 1500 | 461 | ≤500 | ≤50 | 160-250 | Y355M3-6/220 |
| PF- 1320 | 1320 | 2000 | 461 | ≤500 | ≤50 | 260-375 | Y400-6/250 |
A: It can handle a variety of coarse, medium, and fine materials such as granite, limestone, and concrete with a compression strength not exceeding 350MPa.
A: The ideal feed size is between 100-500mm. The maximum feed size should not exceed the specified value for each model (ranging up to 500mm).
A: The machine produces finished products with a superior cubic shape, which are tension-free and without inner cracks.
A: Yes, the gap between the hammer head and the counterattack plate can be adjusted to meet specific user needs for discharge granularity.
A: Compared to hammer crushers, the PF series has a larger crushing ratio and can make fuller use of the high-speed impact energy of the entire rotor.
A: It is widely used in highway construction, railway projects, cement production, chemical industries, and energy sectors.
