Product Description

Brief Introduction

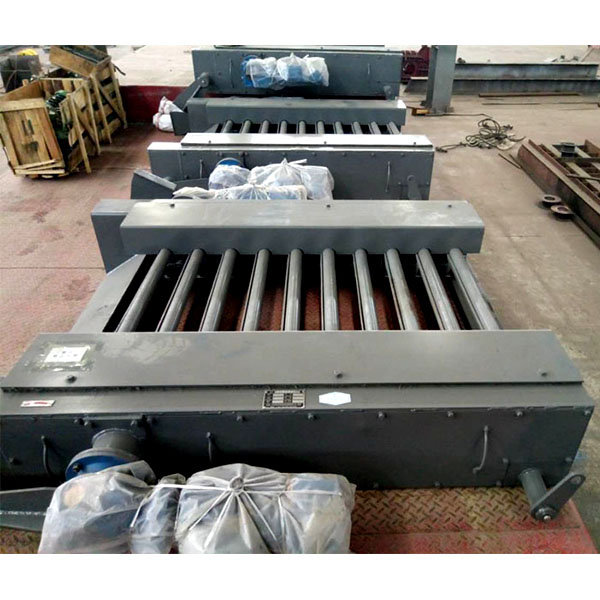

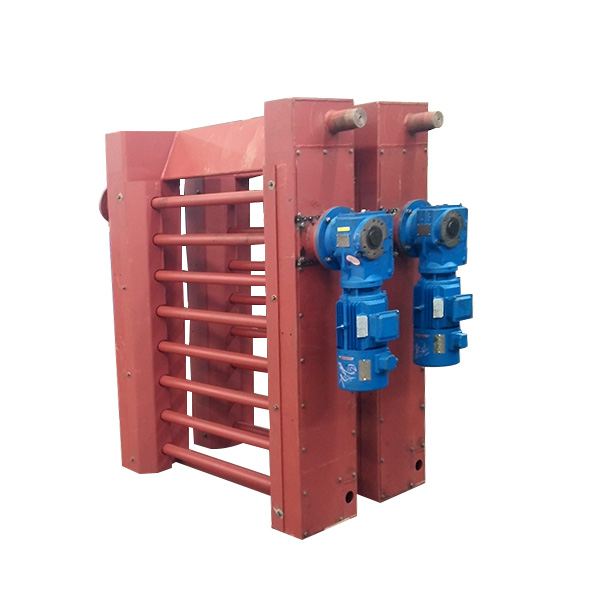

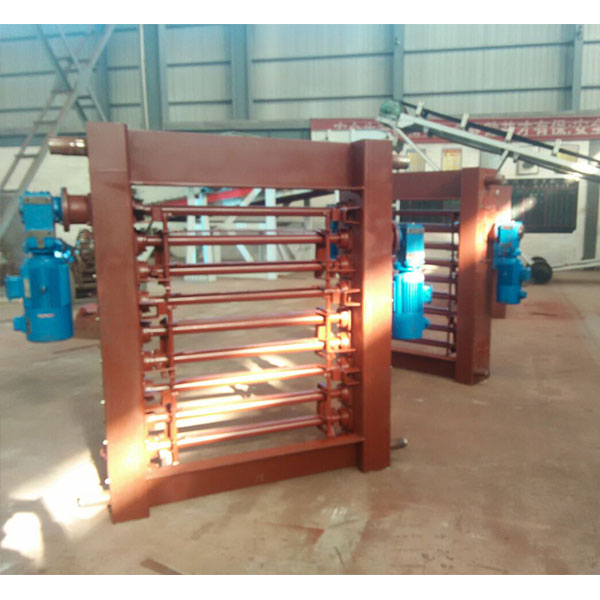

The intelligent slag removing machine is installed at the end of the roller of the belt conveyor or below the hopper. The screen surface is composed of numerous stainless steel or polyurethane rollers arranged in parallel. These rollers are fixed to the shell through bearing seats, with rotation driven by sprockets at both ends.
The rotation direction and speed are managed via PLC control to facilitate optimal material flow. Power is supplied by K-series helical gear reducers on both sides, providing bidirectional drive. To ensure operational safety and prevent material jams, it features a safety protection device and a rotating mechanism for field-adjustable angles.

Applicable Fields

Solid bulk material separation and impurity removal
Metallurgy, coal, ore, and building materials industries
Sintering plant conveying equipment for removing bulk, wire, and fabrics
Prevention of belt cutting and idler winding in transport processes

Performance Features

Maintains original material properties during conveying.
XCZB PLC control with dual driving devices for roller management.
Frequency converter for easy roller speed adjustment.
Dust-proof design with sealed bearing seats and transmission boxes.
Low noise operation with zero vibration.
High production capacity and screening efficiency.
Adjustable tilt angle between 5 and 30 degrees.
Self-cleaning procedure to prevent screen blocking.
Automatic alarm system for bearing oil shortage or overheating.
Broken chain alarm device for the transmission part.
Long service life and simple maintenance.

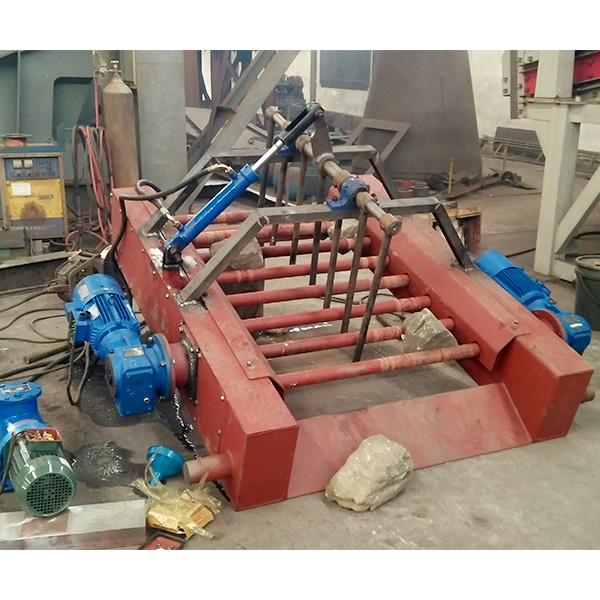

Intelligent slag removing machine display 1

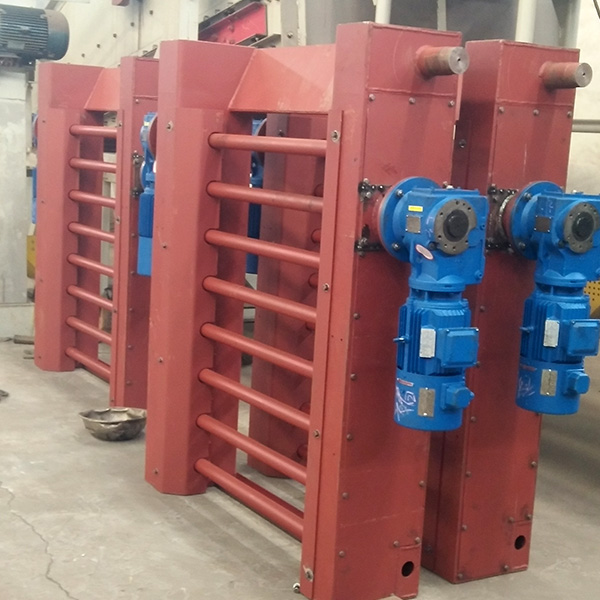

Intelligent slag removing machine display 2

Technical Parameters

Model Processing Capacity (t/h) Motor Speed (rpm) Roller Speed (r/min) Motor Power (Kw) Number Of Motors Under Sieve Granularity(mm) Screening Efficiency Screen Surface Width(mm)
CZB50070-2001500822x0.752User-customize95%450
CZB650120-4001500822x1.1995%590
CZB800200-8001500822x1.5295%730
CZB1000300-16001500822x2.2295%910
CZB1200600-30001500822x2.2295%1090
CZB1400800-40001500822X3.0295%1270
CZB16002000-50001500822X4.0295%1450
CZB18002800-90001500822X5.5295%1630

Frequently Asked Questions

Q1: How is the rotation speed of the sieve rollers controlled?
The rotation speed is easily adjusted using a frequency converter and is managed through a PLC control system for precision.
Q2: Can the equipment prevent screen blocking?
Yes, the machine includes a self-cleaning procedure. It can adjust the rotation direction, speed, and inclination angle to effectively remove debris.
Q3: Is the equipment suitable for harsh, dusty environments?
Absolutely. It features sealed bearing seats and a tightly sealed transmission box to ensure dust cannot enter the internal components.
Q4: What is the adjustable range for the screen tilt?
The tilt angle of the impurity removal screen can be adjusted between 5 and 30 degrees depending on material nature and site requirements.
Q5: What safety alarms are included with the system?
The machine is equipped with an automatic alarm for bearing oil shortages or high temperatures, as well as an alarm for broken transmission chains.
Q6: What is the typical screening efficiency of this machine?
The intelligent slag removing machine maintains a high screening efficiency of approximately 95% across various models.
