Wholesale GZG Motor Electric Vibration Feeder Pricelist, Quotes

1 / 3

Wholesale GZG Motor Electric Vibration Feeder Pricelist, Quotes

Send Inquiry

Product Description

Introduction

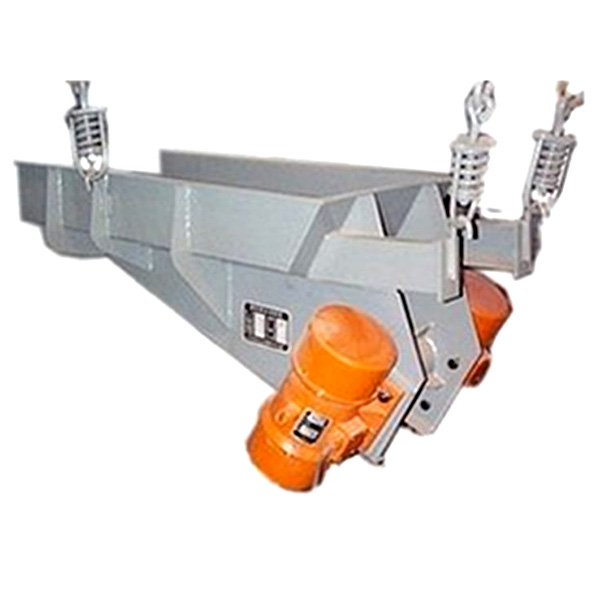

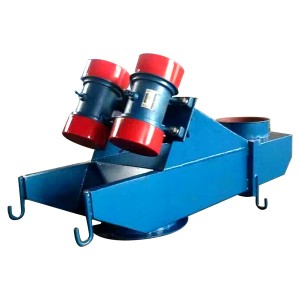

GZG type Motor Vibrating Feeder in the production process, can put massive, granular materials from storage bin evenly, timing, and continuously into the device, and can continuously and evenly feed materials for crusher in the sand and gravel production line. The Feeding Machine is combination equipment of crushing and screening.

Key Features

Simple structure & light weight
Low noise & reliable operation
Large feeding capacity
Easy installation & maintenance
Low trough wear (Parabolic trajectory)
High precision quantity control
Quick start and stable stop

Application Industries

Mining Industry
Coal Industry
Metallurgy Industry
Chemical Industry
Building Materials Plant
Abrasive & Other Industries

Technical Parameters

Model	Groove Size (W×L×H)	Productivity (t/h)	Max Feed Size (mm)	Frequency (times/min)	Amplitude (mm)	Vibrator Model	Voltage (V)	Current (A)	Power (kW)	Weight (kg)
GZG403	400×1000×200	30	60	1450	4	ZG405	380	2×0.73	2×0.25	163
GZG503	500×1000×200	60	60			ZG405		2×0.73	2×0.25	202
GZG633	630×1250×250	110	80			ZG410		2×1.53	2×0.55	385
GZG703	700×1000×250	120	80			ZG415		2×1.95	2×0.75	414
GZG803	800×1500×250	150	80			ZG415		2×1.95	2×0.75	431
GZG903	900×1500×250	170	80			ZG415		2×1.95	2×0.75	605
GZG1003	1000×1750×315	250	100			ZG420		2×2.71	2×1.1	813
GZG1103	1100×1700×315	280	100			ZG420		2×2.71	2×1.1	893
GZG1253	1250×2000×315	320	100			ZG432		2×3.51	2×1.5	1072
GZG705	700×1000×250	120	80	960	6	ZG612		2×1.66	2×0.75	307
GZG805	800×1500×250	140	80			ZG612		2×1.66	2×0.75	501
GZG905	900×1500×250	160	80			ZG612		2×1.66	2×0.75	577
GZG1005	1000×1750×315	220	100			ZG618		2×2.97	2×1.1	817
GZG1105	1100×700×315	240	100			ZG618		2×1.97	2×1.1	894
GZG1255	1250×2000×315	270	100			-		-	-	-

Product Gallery

Frequently Asked Questions (FAQ)

What are the main advantages of the GZG motor vibrating feeder?

It offers a simple structure, light weight, low noise, and reliable operation. It is designed for large feeding capacity and is very easy to install and maintain.

How does the feeding precision remain high in this series?

The feeder uses the principle of self-synchronization with a special vibration motor, allowing it to open, close, and change material flow instantaneously for high precision.

Why is there less wear on the feeder trough?

The material moves forward in a parabolic trajectory, which significantly reduces direct friction and wear on the trough surface.

In which industries is the GZG vibrating feeder commonly used?

It is widely applied in mining, coal, metallurgy, chemical, building materials, and abrasive industries.

Are these feeders suitable for explosion-proof environments?

No, this specific series of vibrating feeders is not designed for explosion-proof occasions.

Can the feeder handle continuous operation in a sand production line?

Yes, it is specifically designed to feed massive and granular materials continuously and evenly into crushers within sand and gravel production lines.
