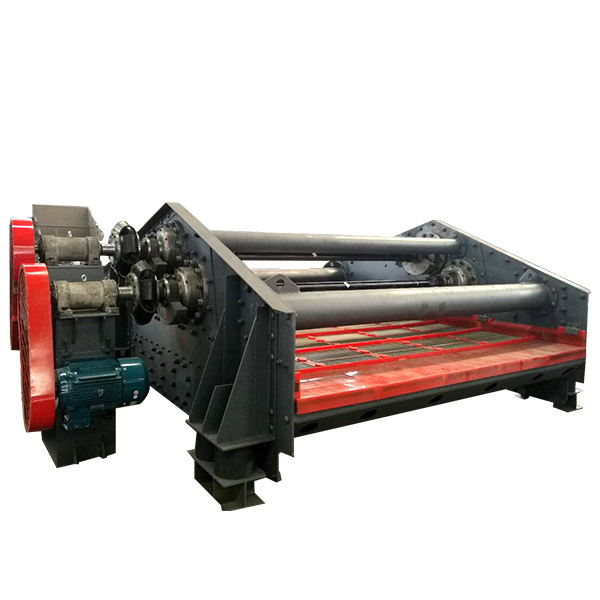

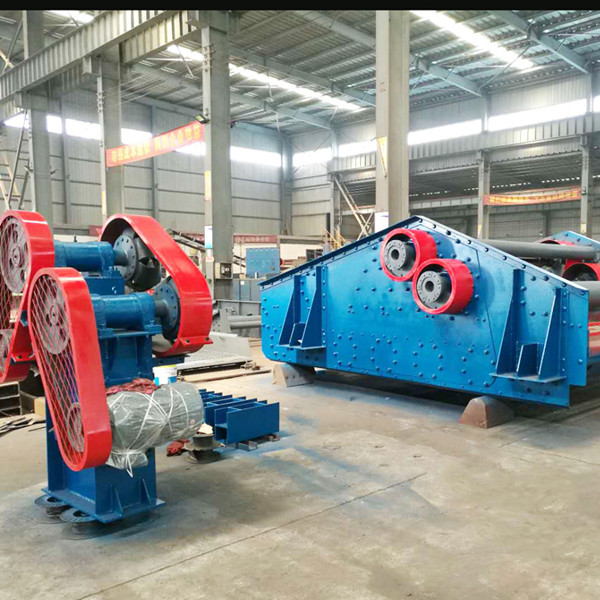

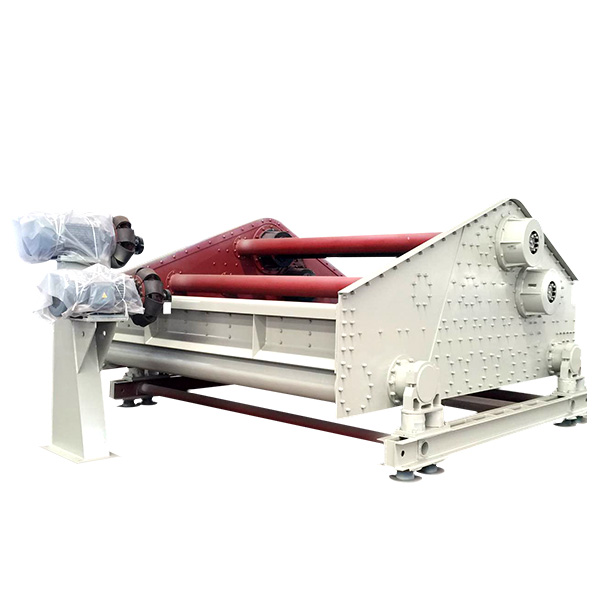

The ZSK linear vibrating screen is a high-performance linear movement and dewatering screen designed for rigorous industrial demands. It is widely utilized across sectors including coal processing, mineral processing, power generation, sugar production, and salt manufacturing. This versatile screening machine excels in both dry and wet screening applications, as well as de-watering, dis-intermediation, and de-silting of medium and fine materials.
| No | Name | Unit | ZSK-1231 | ZSK-1431 | ZSK-1837 | ZSK-2448 | ZSK-3645 |
|---|---|---|---|---|---|---|---|
| 1 | Feed concentration | % | ≥45 | ≥45 | ≥45 | ≥45 | - |
| 2 | Processing capacity | t/h | 15-19 | 15-19 | 28-33 | 60-120 | ＞150 |
| 3 | Screen size | mm | 1200*3100 | 1400*3100 | 1800*3700 | 2400*4800 | 3600*4500 |
| 4 | Mesh size | mm | 0.3, 0.35 | 0.3, 0.35 | 0.3, 0.35 | 0.3, 0.35 | 0.35 |
| 5 | Double amplitude | mm | 3-5 | 3-5 | 3-5 | 3-5 | 6-8 |
| 6 | Vibration frequency | Hz | 25 | 25 | 25 | 25 | 16 |
| 7 | Motor Model | - | Y122M-4 | Y132S-4 | Y132M-4 | Y180M-4 | YE2-200L2-6 |
| 8 | Voltage | V | 380 | 380 | 380 | 380 | 380 |
| 9 | Max Dynamic Load | N | ±200 | ±2500 | ±3500 | ±5000 | 52500 |
A1: It is primarily used for dewatering, grading fine particles, and recovering slime or tailings in industries like coal processing, power generation, and mineral processing.
A2: Yes, the ZSK series is designed for both dry and wet screening, offering high efficiency in de-silting and de-watering tasks.
A3: The machine features high screening accuracy and a design that minimizes dust pollution, making it highly conducive to environmental protection standards.
A4: Yes, the vibrating screen can be fitted with a variety of screen types to suit different material requirements, which also extends the overall service life of the equipment.
A5: By using a block eccentric self-synchronous vibration exciter, the machine achieves high screening efficiency with significantly low energy consumption and low noise levels.
A6: The standard operating voltage for the ZSK linear vibrating screen models is 380V.
