Introduction
ZPS series Vibrating Feeder uses motor as the vibration source, so that the material is thrown up and moving forward at the same time to achieve the purpose of conveying. The Feeding Machine can be divided into open type and closed type, and the conveying form can be divided into slot type conveying or pipe type conveying. The motor position can be assembled on the upper, lower or side.
✔️ Low energy consumption
✔️ Easy installation and maintenance
✔️ Simple structure
✔️ No dust overflow and low noise
Application Industries
Metallurgy Industry
Chemical Industry
Building Materials
Coal Handling Plant
Food Processing
Powder & Particle Transport
Technical Parameter
| Model |
Transport Capacity (t/h) |
Conveying Distance (m) |
Transport Granules (mm) |
Double Amplitude (mm) |
Vibration Times (T/min) |
Power (Kw) |
Electric Current (A) |
Vertical Moving Line (Kg) |
Weight (Kg) |
| ZPS-3 |
I |
11 |
3 |
30 |
4-6 |
1450 |
0.75*2 |
1.84*2 |
157 |
308 |
| II |
17 |
60 |
0.75*2 |
1.84*2 |
214 |
420 |
| III |
25 |
100 |
0.75*2 |
1.84*2 |
230 |
450 |
| ZPS-4 |
I |
11 |
4 |
30 |
4-6 |
1450 |
0.75*2 |
1.84*2 |
265 |
520 |
| II |
17 |
60 |
0.75*2 |
1.84*2 |
296 |
580 |
| III |
25 |
100 |
0.75*2 |
1.84*2 |
316 |
620 |
| ZPS-5 |
I |
9 |
5 |
30 |
4-6 |
1450 |
1.5*2 |
3.48*2 |
332 |
650 |
| II |
15 |
60 |
1.5*2 |
3.48*2 |
352 |
690 |
| III |
23 |
100 |
1.5*2 |
3.48*2 |
367 |
720 |
| ZPS-6 |
I |
9 |
6 |
30 |
5-7 |
960 |
2*2 |
4.1 *2 |
403 |
790 |
| II |
13 |
60 |
2*2 |
4.1 *2 |
439 |
860 |
| III |
23 |
100 |
2*2 |
4.1 *2 |
561 |
1100 |
| ZPS-10 |
I |
50 |
10 |
30 |
6-8 |
960 |
3.7*2 |
7.4*2 |
1276 |
2500 |
| II |
10 |
60 |
3.7*2 |
7.4*2 |
1352 |
2650 |
| III |
15 |
100 |
3.7*2 |
7.4*2 |
1429 |
2800 |

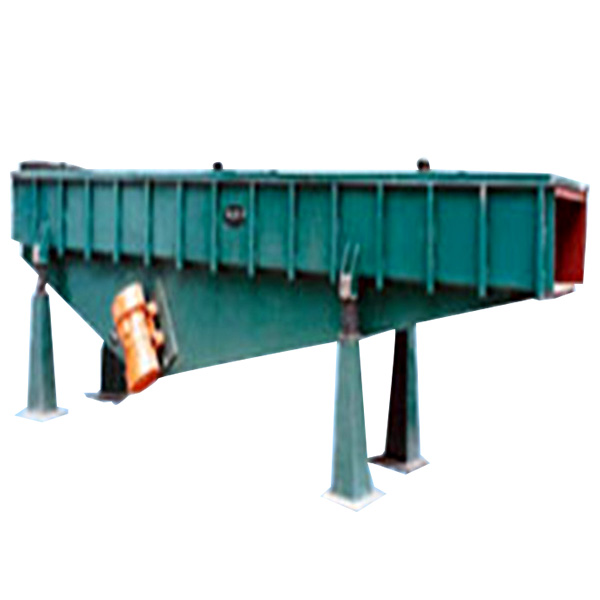

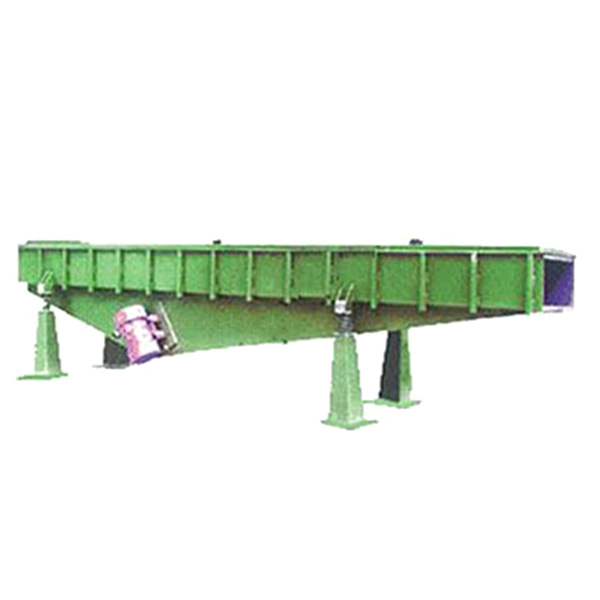

Product Display
Frequently Asked Questions
What is the vibration source for the ZPS series feeder?
The ZPS series vibrating feeder uses a specialized motor as the vibration source, which allows materials to be thrown upward and moved forward simultaneously for efficient conveying.
Can this machine handle dust-sensitive materials?
Yes, the feeder can be configured as a closed type with pipe conveying to ensure no dust overflow, making it ideal for the chemical and food industries.
What types of conveying structures are available?
The machine is highly versatile and can be designed in either slot type or pipe type conveying forms, depending on your specific material handling requirements.
Is the motor position adjustable during installation?
To accommodate different spatial constraints, the vibration motor can be assembled on the upper, lower, or side positions of the feeding machine.
Which industries typically use the ZPS vibrating feeder?
It is widely used in metallurgy, chemical processing, building materials, coal handling plants, and the food industry for transporting powders and particles.
What are the main advantages of this feeding equipment?
The ZPS series is known for its simple structure, low energy consumption, low noise levels, and ease of installation and maintenance.
