Product Description

Introduction

Hammer Crusher is an impact rotor crusher with hammer. After the material enters the crusher, it is crushed by the ring hammer which rotates with the rotor at high speed. At the same time, the broken materials obtain functions from outside the ring hammer, rush to the broken plate at a high speed, suffer secondary crushing, and then fall onto the sieve plate, which is further broken by the shearing, extrusion, grinding of the ring hammer and the interaction between materials, and then discharged through the sieve plate. The debris that cannot be broken enters the metal collector and is removed periodically.

Operating Requirements: The compressive strength of the material shall not exceed 100Mpa and the surface moisture shall not exceed 15%.

⚙

Technical Parameters

Model	Rotor Diameter* Length (mm)	Production Capacity (t/h)	Feeding Granularity (mm)	Discharge Granularity (mm)	Matching Motor
Model	Rotor Diameter* Length (mm)	Production Capacity (t/h)	Feeding Granularity (mm)	Discharge Granularity (mm)	Model	Power (Kw)	Voltage (V)
PCH0604	600*400	22-33	200	≤30	Y180L-6	15	380 / 660
PCH0606	600*600	30-60	-	-	Y225M-6	30	-
PCH0808	800*800	75-105	-	-	Y280M-6	45	-
PCH1010	1000*1000	160-200	300	-	Y315M2-8	90	-
PCH1010 (High)	1000*1000	200-245	-	-	Y315M3-8	110	-
PCH1016	1000*1600	400-500	-	-	Y400-6	220	-

📷

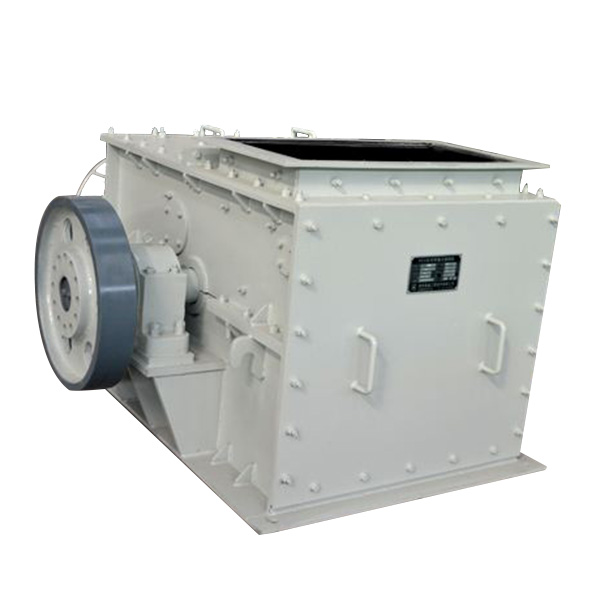

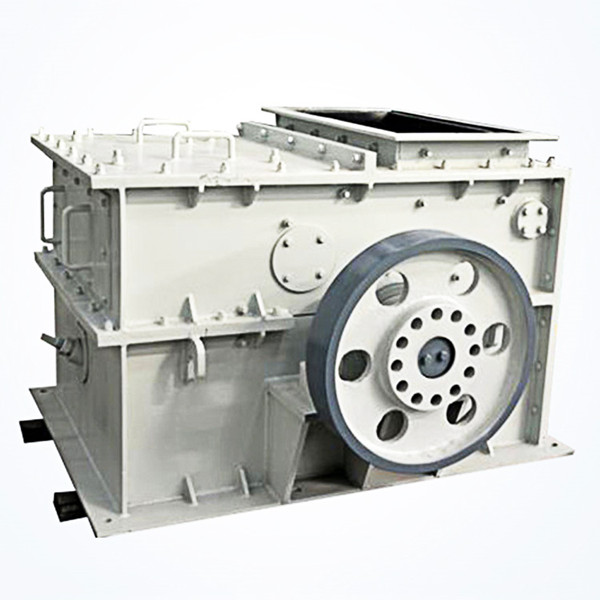

Product Display

✔

Applications

PCH Crusher Machine is most suitable for crushing all kinds of brittle materials. Common applications include:

Energy Industry: Coal, coke, and gangue crushing.
Construction Materials: Limestone, slag, shale, and loose stone.
Mining: Various ores and red sandstone.
Chemical & Infrastructure: Lime and other brittle minerals.

Frequently Asked Questions (FAQ)

What is the primary working principle of the PCH Hammer Crusher?

The machine uses a high-speed rotating ring hammer to impact the material. The material is further crushed by hitting a broken plate (secondary crushing) and then undergoes shearing, extrusion, and grinding against the sieve plate until it reaches the desired size.

What are the material limits for this equipment?

It is designed for brittle materials with a compressive strength of no more than 100Mpa and surface moisture content not exceeding 15%.

How does the machine handle non-crushable metal debris?

The equipment is equipped with a metal collector. Any debris that cannot be broken by the hammers is automatically directed into this collector and can be removed periodically by operators.

What determines the final discharge size of the material?

The discharge granularity is primarily controlled by the size of the holes in the sieve plate located at the bottom of the crushing chamber.

Is the PCH Hammer Crusher suitable for wet coal?

Yes, as long as the surface moisture is below 15%. Excessive moisture may lead to clogging of the sieve plate, reducing production efficiency.

Which motor models are used in these crushers?

Depending on the model, we use various motors such as the Y180L-6 (15Kw) for smaller units and the Y400-6 (220Kw) for high-capacity industrial units like the PCH1016.
