Product Description

Introduction

Adjusting the height of rectifying voltage can control the feed amount of Electromagnetic Vibrating Feeder. The Feeding Machine uses SCR to supply power. The output voltage can be controlled by changing the conduction angle of SCR. According to the operating conditions, different signals can be used to control the SCR angle to achieve the purpose of automatic quantitative feeding.

Core Advantages

✔ Small in size, low in noise, light in weight, high in working frequency, and low power consumption.

✔ Used in automatic control process to realize the automation of production process.

✔ Stepless adjustment of feeding quantity, frequent start and continuous operation under rated voltage and amplitude conditions.

✔ Convenient installation and maintenance.

Technical Parameters

Type	Model	Productivity(t/h)		Feeding Granularity (mm)	Double Amplitude(mm)	Supply Voltage(V)	Electric Current(A)		Effective Power (Kw)	Control Box Signal
Basic Type	GZ1	5	7	50	1.75	220	1.34	1	0.06	XKZ-5G2
	GZ2	10	14	50			3	2.3	0.15	-
	GZ3	25	35	75			4.58	3.8	0.2	-
	GZ4	50	70	100			8.4	7	0.45	XKZ-20G2
	GZ5	100	140	150			12.7	10.6	0.65	-
	GZ6	150	210	200	1.5	380	16.4	13.3	1.2	XKZ-20G3
	GZ7	250	350	250			24.6	20	3	-
	GZ8	400	560	300			39.4	32	4	-
	GZ9	600	840	350			47.6	38.6	5.5	XKZ-200G3
	GZ10	750	1050	500			39.4*2	32*2	4*2	XKZS-200G3
	GZ11	1000	1400	500			47.6*2	38.6*2	5.5*2	-
Upper Vibration	GZ3S	25	35	75	1.75	220	4.58	3.8	0.2	XKZ-5G2
	GZ4S	50	70	100			8.4	7	0.45	XKZ-20G2
	GZ5S	100	140	150			12.7	10.6	0.65	-
	GZ6S	150	210	200	1.5	380	16.4	13.3	1.5	XKZ-20G3
	GZ7S	250	350	250			24.6	20	3	XKZ-100G3
	GZ8S	400	560	300			39.4	32	4	-

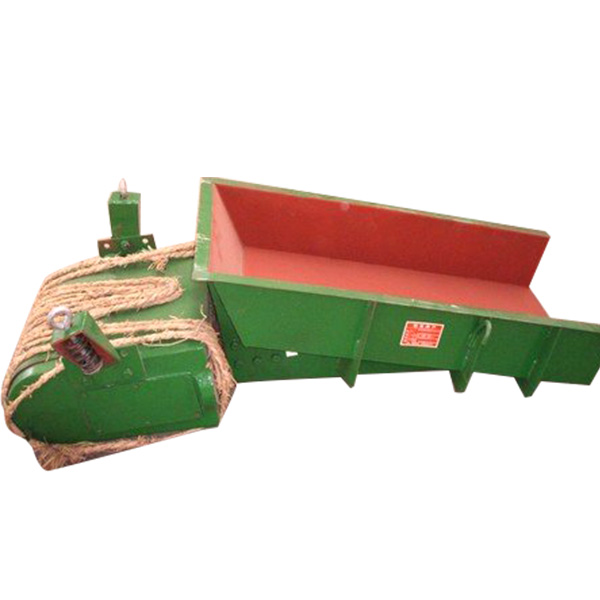

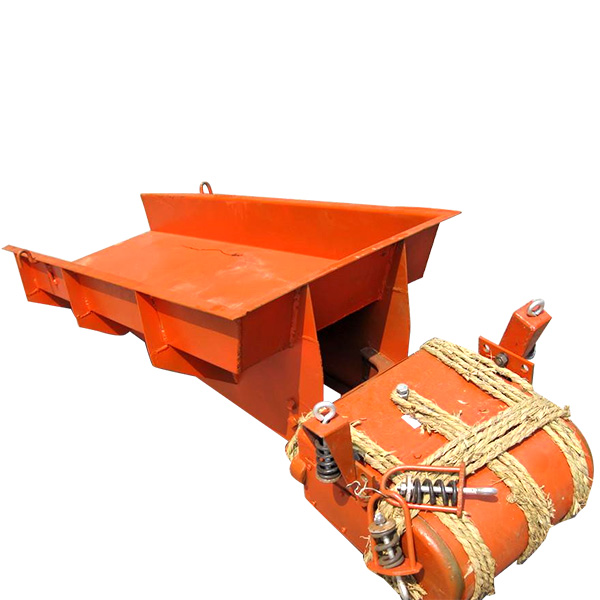

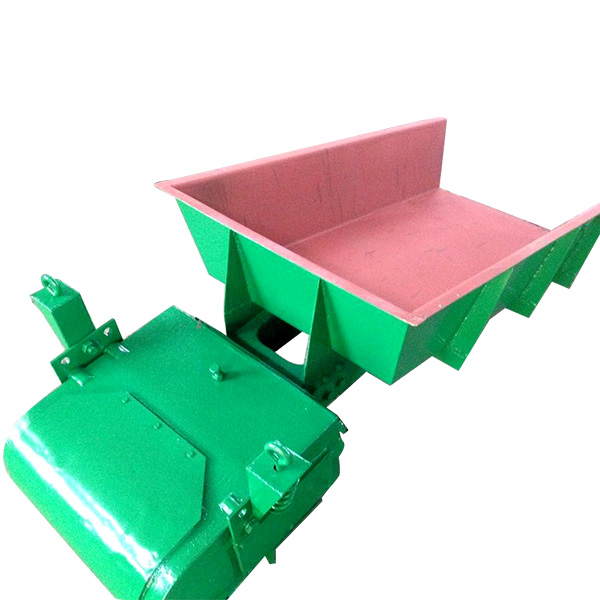

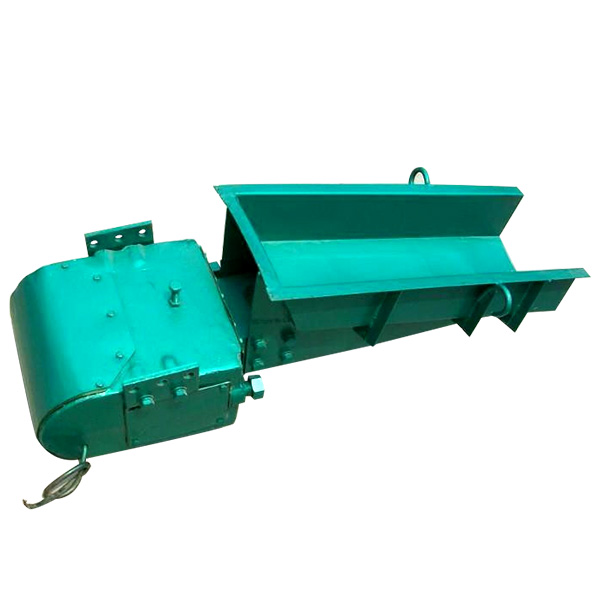

Product Gallery

Frequently Asked Questions (FAQ)

Q1: How is the feed amount of the Electromagnetic Vibrating Feeder controlled? The feed amount is controlled by adjusting the height of the rectifying voltage. Since the machine uses SCR for power supply, the output voltage is easily regulated by changing the SCR's conduction angle.

Q2: Can this machine be used for automated production? Yes, the feeder is designed for use in automatic control processes. It can accept different signals to control the SCR angle, enabling automatic quantitative feeding and production automation.

Q3: What are the main physical advantages of this feeder? The machine is small in size, lightweight, and produces low noise. It also operates at a high frequency while maintaining low power consumption.

Q4: Is the feeding quantity adjustable during operation? Yes, it features stepless adjustment of the feeding quantity. It also supports frequent starts and continuous operation under rated voltage and amplitude conditions.

Q5: Is maintenance difficult for the Electromagnetic Vibrating Feeder? Not at all. The design ensures both convenient installation and low-effort maintenance for long-term industrial use.

Q6: What power signals does the control box match? Depending on the model, it matches various control box signals such as XKZ-5G2, XKZ-20G2, and XKZ-20G3, ensuring compatibility with different voltage requirements (220V/380V).
