📘Introduction

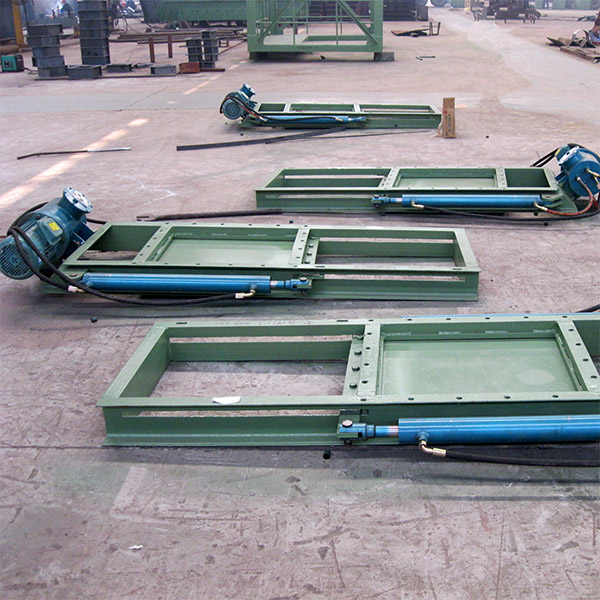

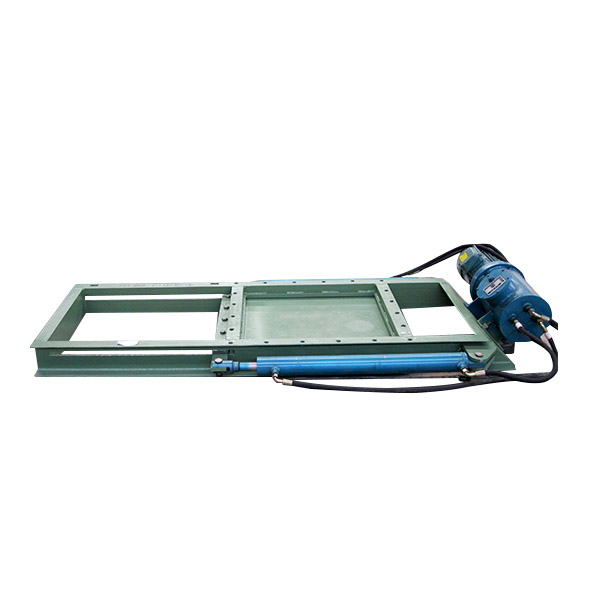

Electro-hydraulic plate gate is suitable for loading vehicles under coal bunker (or other material warehouse), which belongs to intermittent loading gate. The hydraulic sector gate is easy to operate, flexible and reliable. It is an ideal loading equipment.
🚀Features & Advantages
Simple in structure, easy to operate
High quality carbon steel plate for valve plate color
Flexible in sliding, saving energy in inserting and pumping
Excellent sealing performance with small local resistance loss
Convenient in maintenance and disassembly, not easy to deform
📦Applicable Medium
Dust Solid
Body Powder
Crystal Materials
📊Technical Parameters
| Shape And Installation Dimensions |
| Model |
Main Dimensions (mm) |
Electro-hydraulic Push Rod Model |
Power (Kw) |
| A |
B |
H |
L |
t |
N * a |
n -Φ |
| DPZ-B40 |
400 |
790 |
200 |
1285 |
12 |
3*160 |
24 -22 |
YZW2-420 |
2.2 |
| DPZ-B50 |
500 |
890 |
1485 |
3*195 |
24-22 |
YZW2-520 |
| DPZ-B60 |
600 |
990 |
1685 |
4*170 |
32-22 |
YZW2-520 |
| DPZ-B70 |
700 |
1090 |
250 |
1925 |
14 |
4* 198 |
32-22 |
YZW2-520 |
3 |
| DPZ-B80 |
800 |
1190 |
2135 |
5* 178 |
40 -22 |
YZW2-520 |
| DPZ-B90 |
900 |
1290 |
2335 |
5* 198 |
40 -22 |
YZW2-520 |
| DPZ-B100 |
1000 |
1390 |
320 |
2570 |
16 |
5*220 |
40 -26 |
YZW2-520 |
4 |
| DPZ-B120 |
1200 |
1590 |
2850 |
5*260 |
40 -26 |
YZW2-520 |
|
Note: It can be designed and manufactured according to user's requirements.
|
❓Frequently Asked Questions
What is the primary application of the electro-hydraulic plate gate?
It is primarily designed for loading vehicles under coal bunkers or other material warehouses, functioning as an efficient intermittent loading gate.
What materials are used in the construction of the valve plate?
The valve plate is manufactured using high-quality carbon steel, ensuring durability and resistance to deformation during operation.
Is the plate gate energy-efficient?
Yes, the gate is designed for flexible sliding, which significantly saves energy during the inserting and pumping processes while maintaining low local resistance loss.
Can this gate handle fine powders?
Absolutely. It is specifically designed to handle applicable media such as dust solids, body powders, and crystals.
How difficult is the maintenance for this equipment?
The equipment is designed for convenience; it features a structure that is easy to disassemble and maintain, reducing downtime.
Are custom sizes available for specific installation needs?
Yes, the gate can be professionally designed and manufactured according to the specific technical requirements and dimensions provided by the user.
